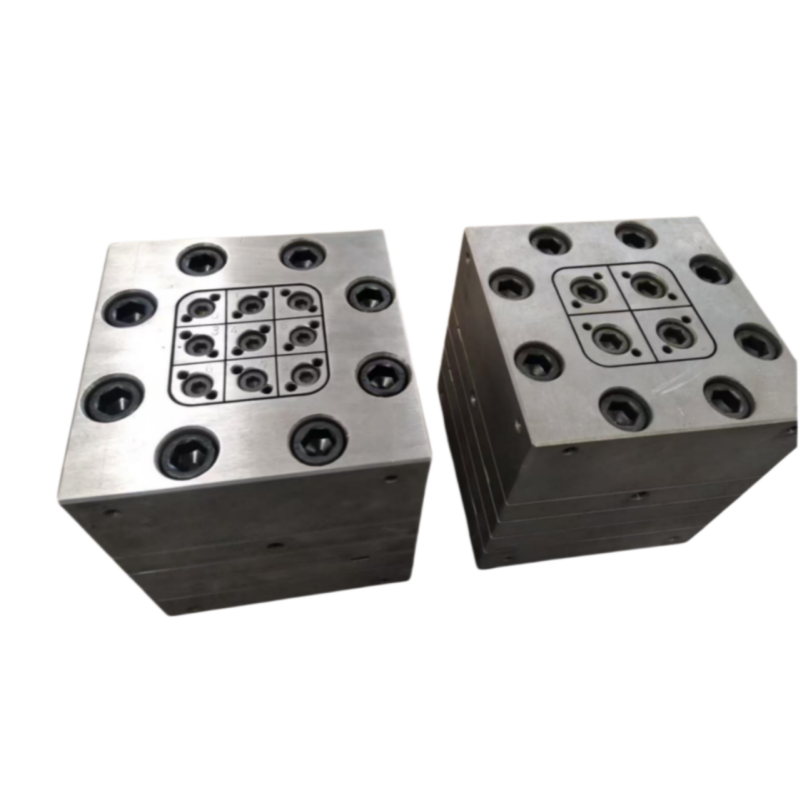

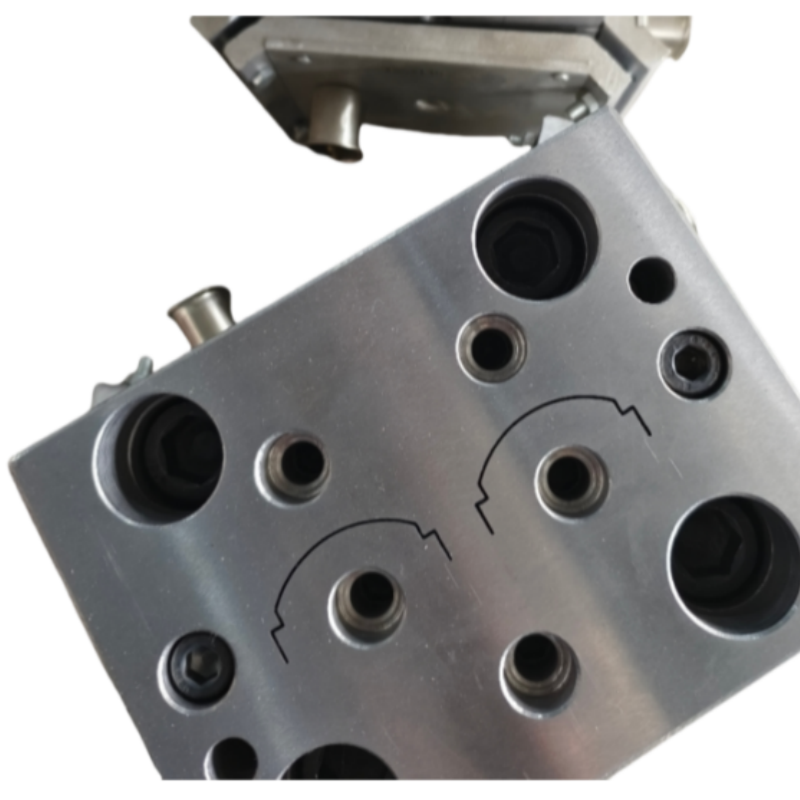

UPVC PVC Jamb Architrave Embossed Extrusion Die Mold
Brand JUN HUI
Product origin HuBei
UPVC PVC Jamb Architrave Embossed Extrusion Die Mold
This UPVC window jamb extrusion mold is specifically designed for modern architectural door and window decorations, making it widely applicable to the production of various UPVC window jambs, architraves, and decorative profiles. Utilizing a high-precision CAD/CAM design system and a scientifically engineered flow channel structure, this PVC architrave extrusion die ensures uniform material discharge and stable dimensions during high-speed extrusion. Paired with advanced embossing technology, the PVC embossed surface extrusion die can create diverse surface effects, such as wood grains and 3D textures. This significantly enhances the aesthetic appeal and market competitiveness of the products, perfectly meeting the customization needs of domestic and international clients for high-quality decorative building materials.

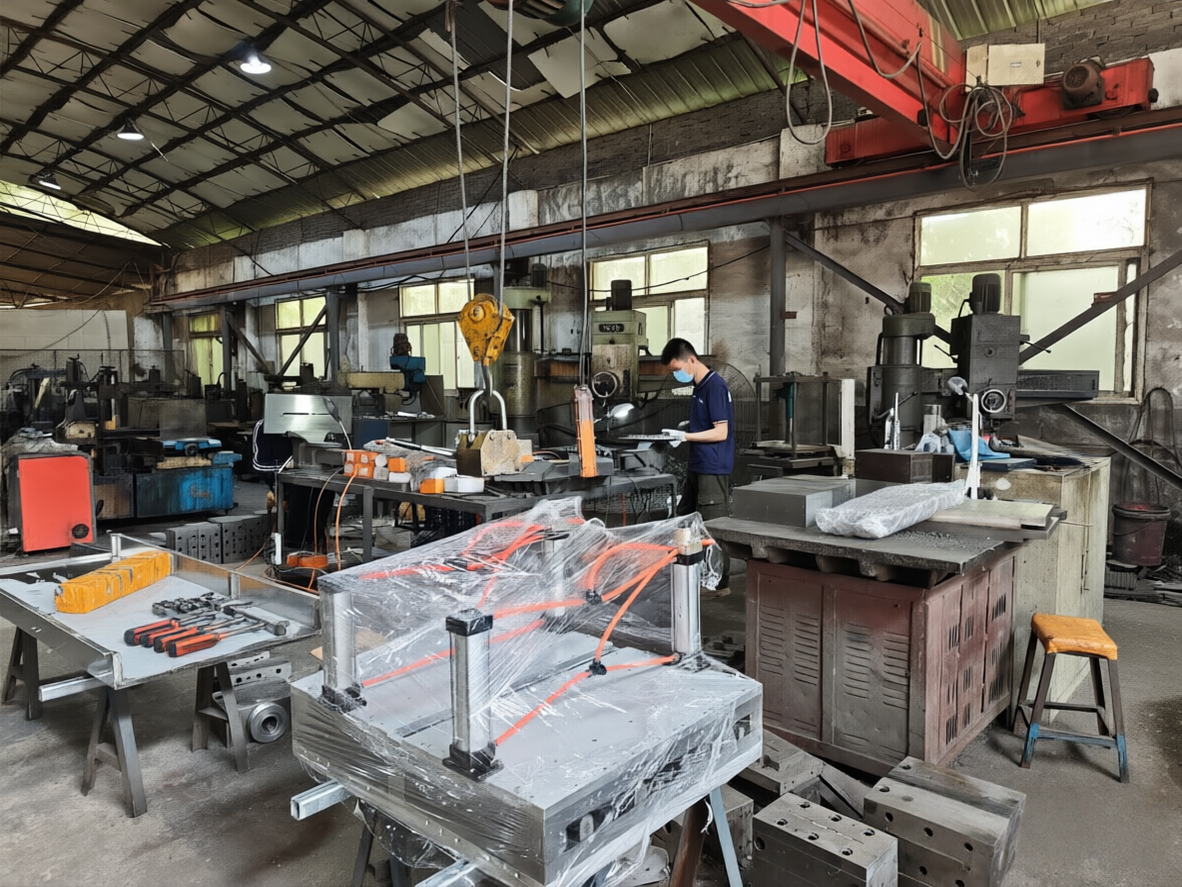

Backed by over a decade of R&D and manufacturing experience in plastic molds, we have provided supporting services to more than 400 profile manufacturers worldwide, with annual sales exceeding 1,200 sets. We maintain ample inventory to support rapid delivery. Our R&D team, led by several senior engineers, continuously optimizes the structural design of the PVC architrave extrusion die to enhance mold lifespan and production efficiency. Relying on robust manufacturing capabilities and a stringent quality control system, our products are exported to over 20 countries and regions, including North America, Europe, and Southeast Asia. We are deeply trusted by our clients and serve as your ideal partner for expanding in the door and window decoration market.
UPVC PVC Jamb Architrave Embossed Extrusion Die Mold
Product Detailed Description

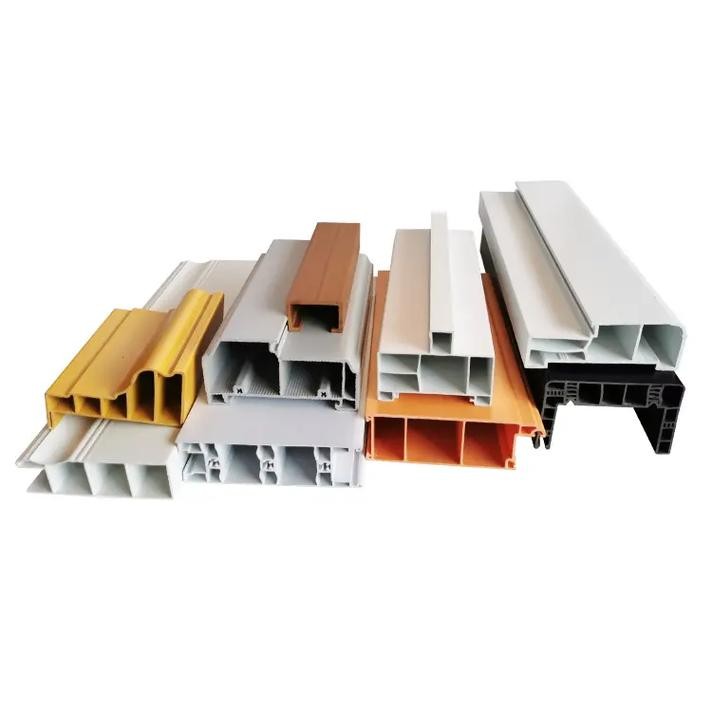

The UPVC PVC Jamb Architrave Embossed Extrusion Die Mold is a high-precision forming equipment specifically developed for high-end interior decoration building materials. This mold is widely used in the production of various door and window decorative trim profiles, perfectly adapting to the extrusion of UPVC and PVC materials. As a professional UPVC window jamb extrusion mold, it ensures dimensional accuracy and surface flatness for window frame casing lines; simultaneously, as a PVC architrave extrusion die, its flow channel design balances the structural strength and aesthetics of door casings. Notably, this equipment integrates advanced PVC embossed surface extrusion die technology, capable of synchronously completing complex surface embossing (such as wood grain or leather texture) during the extrusion process. This eliminates the need for secondary processing while endowing the product with a realistic texture, making it an ideal choice for producing high-quality products using PVC door casing line extrusion molds.

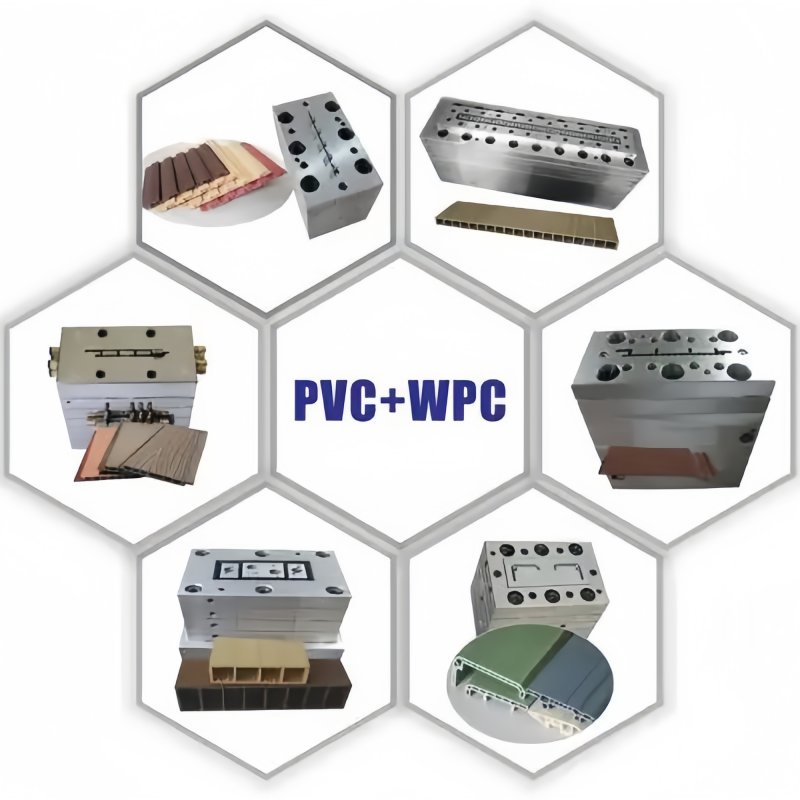

Integrated Embossing Molding Technology: The unique PVC embossed surface extrusion die design utilizes high-precision engraved rollers coordinated with the sizing die to achieve simultaneous extrusion and embossing. The texture is clear, three-dimensional, and has strong adhesion, effectively solving the problem of delamination common in traditional post-lamination processes.
Scientific Flow Channel & Temperature Control System: Tailored for the characteristics of UPVC window jamb extrusion molds, the internal flow channels are optimized via fluid dynamics. Combined with multi-zone independent PID temperature control, it ensures uniform plasticization of the melt even under high-speed extrusion, preventing flow marks or scorching on the surface.
Premium Material & Durability: Core mold components are made from imported alloy tool steel, treated with vacuum heat treatment and surface nitriding, possessing extremely high hardness and wear resistance. As a UPVC window jamb extrusion mold, it maintains dimensional stability even during long-term continuous production, significantly extending the mold's service life.
Flexible Customization & Quick Changeover: Supports custom development for various cross-sectional shapes and embossed textures. The structural design facilitates easy disassembly, cleaning, and maintenance, allowing for rapid changeover of inserts with different specifications to meet the flexible production needs of PVC architrave extrusion dies for multi-variety, small-batch orders.
Parameter Item Specification / Description Applicable Material UPVC, PVC, Rigid Polyvinyl Chloride Mold Steel Imported Alloy Tool Steel / 38CrMoAlA Surface Treatment Hard Chrome Plating / Nitriding / Mirror Polishing Applicable Products Window Jambs, Architraves, Decorative Moldings, Embossed Profiles Heating Method Cast Copper Heaters / Ceramic Bands Cooling Method Air Cooling / Water Circulation System Processing Precision ±0.02mm (High Precision CNC Machining) Customization Service Supports Drawing & Texture Customization
