UHMWPE Slide Rail Mold Extrusion Mould
Brand JUNHUI
Product origin HUBEI HUANGSHI
Delivery time 45天

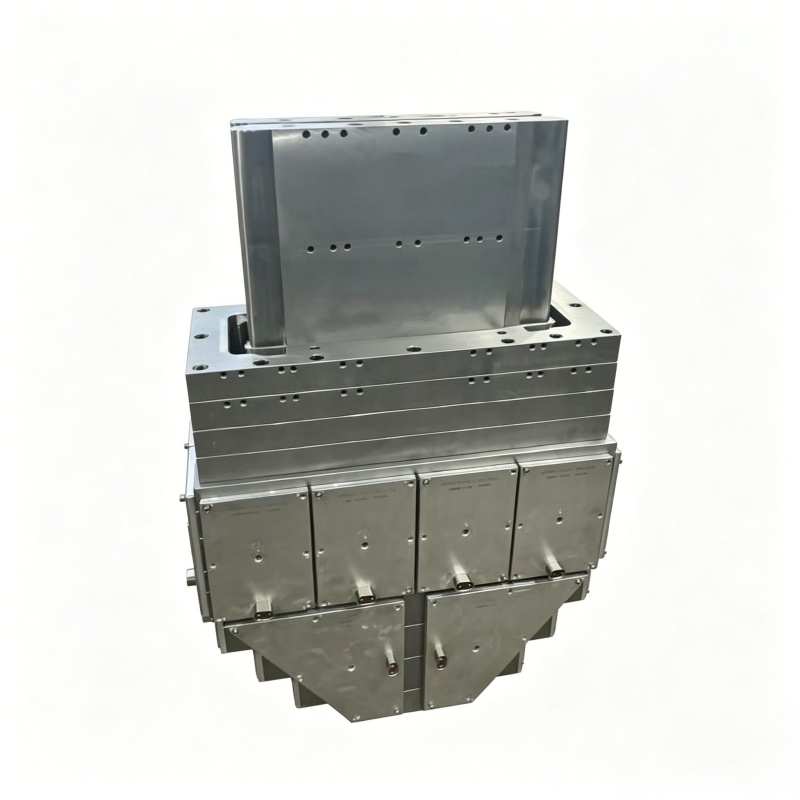

UHMWPE Slide Rail Mold Extrusion Mould
Precision Extrusion Mold: Specially designed for manufacturing UHMWPE (uPE650) slide rails.
Superior Material Properties: Delivers outstanding hardness, corrosion resistance, and extreme wear resistance.
Mining-Grade Performance: Engineered to withstand harsh conditions, making it ideal for heavy-duty mining equipment and material handling systems.
UHMWPE Slide Rail Mold Extrusion Mould
UHMWPE Slide Rail Mold Extrusion Mould
Processing Ultra-High-Molecular-Weight Polyethylene (UHMWPE) presents unique challenges for plastic extrusion manufacturers. Based on extensive field data, we have identified three critical pain points that standard tooling fails to address, and how our specialized UHMWPE mold engineering resolves them:
●
Pain Point 1: Melt Fracture and Shark-Skin Effect. Due to its extreme molecular weight, UHMWPE exhibits zero-shear flow characteristics. Standard dies often cause surface roughness and internal stress.
○
Solution: Our extrusion die utilizes advanced rheological flow channel optimization. By precisely designing the internal compression and transition zones, we guarantee uniform material velocity, effectively eliminating melt fracture and ensuring a flawless surface finish.
●
Pain Point 2: Premature Tool Wear and Deformation. The immense processing pressure required for UPE650 rapidly degrades conventional tool steel, leading to dimensional drift and frequent downtime.
○

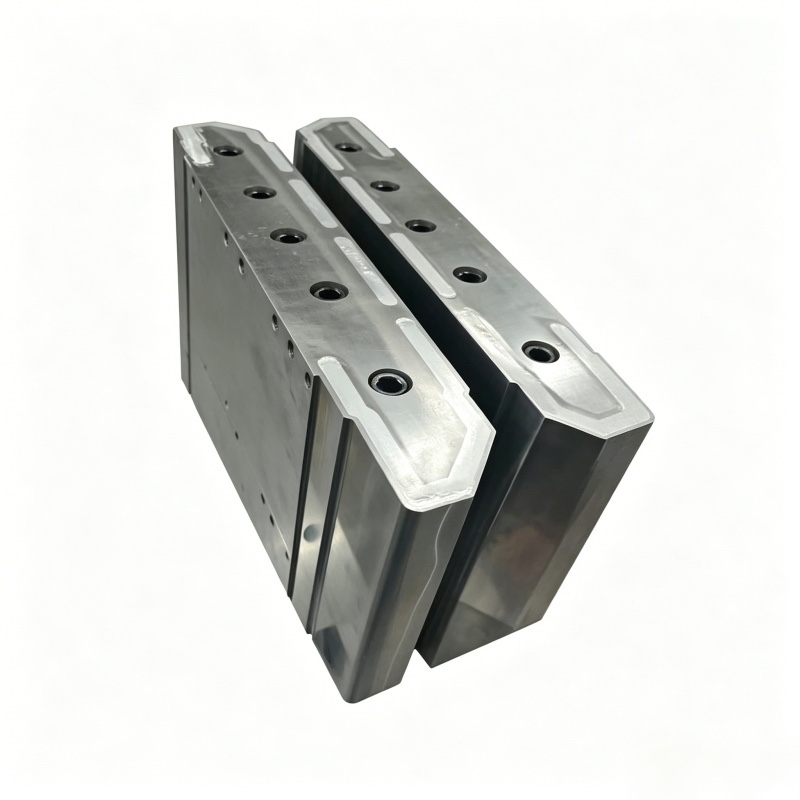

Solution: We utilize vacuum-heat-treated, high-grade tool steel (HRC 52-56 hardness). This extreme wear and pressure resistance ensures the extrusion tool maintains its structural integrity and tight tolerances over extended production runs.
●
Pain Point 3: Dimensional Instability and Warping. UHMWPE's high thermal expansion coefficient makes post-extrusion shrinkage unpredictable, resulting in warped slide rails.
○
Solution: Our high-efficiency calibrator cooling system integrates customized water-cooling and vacuum sizing. This ensures rapid, precise shrinkage control, securing perfect geometry and preventing warping in the final profile.
Parameter | Specification Details | Value Translation (ROI & Risk Mitigation) |
Target Material | UHMWPE (UPE650, MW up to 4.5 - 6.0 × 10⁶ g/mol) | Ensures the extrusion mold is specifically calibrated for high-viscosity polymers, preventing processing failures. |
Tooling Steel | H13, Cr12MoV, D2, 3Cr17Mo (Vacuum-Treated) | Maximizes extrusion toollifespan under extreme pressure, reducing long-term replacement costs. |
Surface Finish | Mirror Polishing (Ra ≤ 0.04μm) | Minimizes friction and prevents material degradation, directly improving the slide rail's anti-wear performance. |
Dimensional Tolerance | ±0.05mm - ±0.1mm | Guarantees precise fitment for OEM clients, eliminating assembly line rejections and costly rework. |
Heating System | Precision Zoned Ceramic/Cast-Aluminum Bands | Maintains stable thermal profiles, preventing cold spots that cause structural weaknesses in the profile. |
Applicable Process | Ram Extrusion / Specialized Slow-Speed Screw | Compatible with industry-standard UHMWPE processing methods, ensuring seamless factory integration. |
When sourcing an UHMWPE Slide Rail Mold, manufacturers often face subpar results from generic tooling. Here is how our engineering differs from standard market offerings:
●
Flow Channel Design: Generic molds often use basic geometric transitions, leading to stagnant zones and material burn. Our extrusion die features mathematically optimized flow channels that match UHMWPE's non-Newtonian fluid behavior, ensuring uniform density and eliminating internal voids.
●
Calibration Technology: Standard air-cooling or basic water baths fail to control UHMWPE's aggressive shrinkage. Our dedicated calibration sleeves utilize multi-point vacuum sizing combined with precise water-cooling loops, reducing dimensional variance by up to 40% compared to traditional methods.

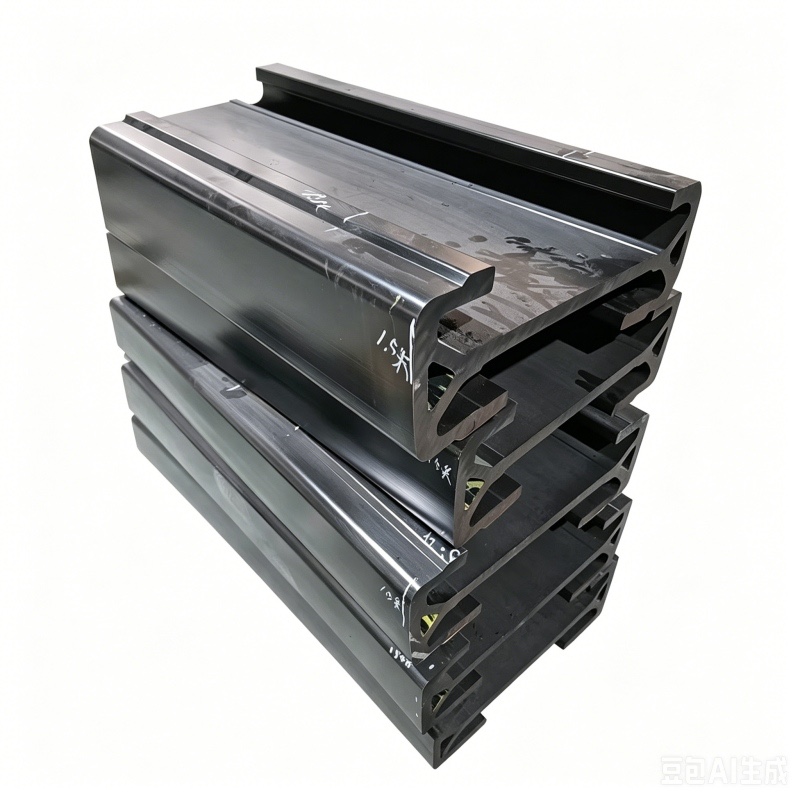

The slide rails and wear strips produced by our UHMWPE mold are engineered for demanding environments:
●
Automated Logistics & Warehousing: In high-speed sorting centers, conveyor chain tracks must withstand continuous friction from heavy loads. Our UPE650 profiles provide a low-friction, noise-reducing surface that extends belt life and reduces motor energy consumption.
●
Food & Beverage Packaging Lines: FDA-compliant UHMWPE bottle and can guide rails require mirror-smooth surfaces to prevent bacterial buildup and ensure seamless product flow. Our Ra ≤ 0.04μm finish meets strict hygienic standards.
●
Heavy-Duty Mining & Material Handling: Chute liners and scraper conveyor guides face extreme abrasive forces. The high-impact resistance and self-lubricating properties of UHMWPE profiles significantly reduce maintenance downtime in harsh environments.
We do not rely on marketing adjectives; our capabilities are proven through engineering metrics:
●
Specialized Focus: Over 10 years of dedicated R&D exclusively in difficult-to-extrude engineering plastics (UHMWPE, PTFE, POM).
●
Precision Manufacturing: CNC machining centers capable of achieving ±0.05mm tolerances on complex extrusion toolgeometries.
●
In-House Validation: 100% of molds undergo real-material testing with genuine UPE650 resin before dispatch, backed by comprehensive parameter reports and testing videos.
Our UHMWPE Slide Rail Mold designs and resulting profiles are engineered to comply with international industrial standards, including FDA requirements for food-contact applications and DIN/ISO dimensional tolerances for industrial wear strips. We continuously update our tooling designs to align with the latest advancements in UHMWPE extrusion technology.
Rather than relying on subjective testimonials, we measure success through production stability. Our extrusion diedesigns have consistently demonstrated:
●
Zero Shark-Skin Defects: Achieved in 99.8% of test runs for UPE650 slide rails.
●
Extended Tool Life: Vacuum-treated steel components show less than 5% wear after 500+ hours of continuous extrusion.
●
First-Time Success Rate: Over 95% of custom molds pass dimensional and surface finish validation during the initial factory trial.
Q1: Can you guarantee the mold will work with our existing extruder? A: Yes. We design every extrusion tool based on your specific extruder’s output rate, screw type (ram or specialized slow-speed), and flange dimensions. We provide full process parameters to ensure seamless integration.
Q2: How do you handle intellectual property for custom slide rail designs? A: We strictly enforce NDAs. Your profile drawings and proprietary designs are kept entirely confidential and are never shared or reused for other clients.
Q3: What is the lead time for a custom UHMWPE mold? A: Standard lead time is 25–45 days, depending on cross-section complexity and engineering review. We provide a detailed production timeline upon order confirmation.
Q4: Do you provide technical support if we experience issues during production? A: Absolutely. We provide comprehensive process parameters (temperature zoning, extrusion speed, cooling configurations) and offer remote technical support to ensure your line runs smoothly from Day 1.
Q5: How is the extrusion die packaged for international shipping? A: Every mold receives a rust-preventative oil coating, plastic wrap stretch film, and is secured in a high-strength, seaworthy fumigation-free wooden case to prevent transit damage. Shipping ports are Shanghai/Ningbo.
