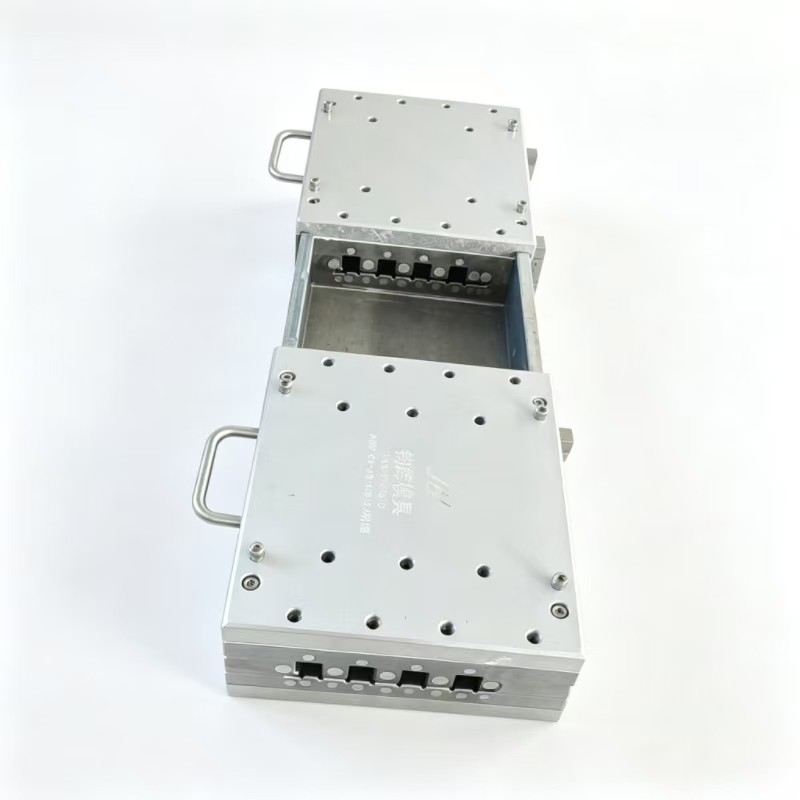

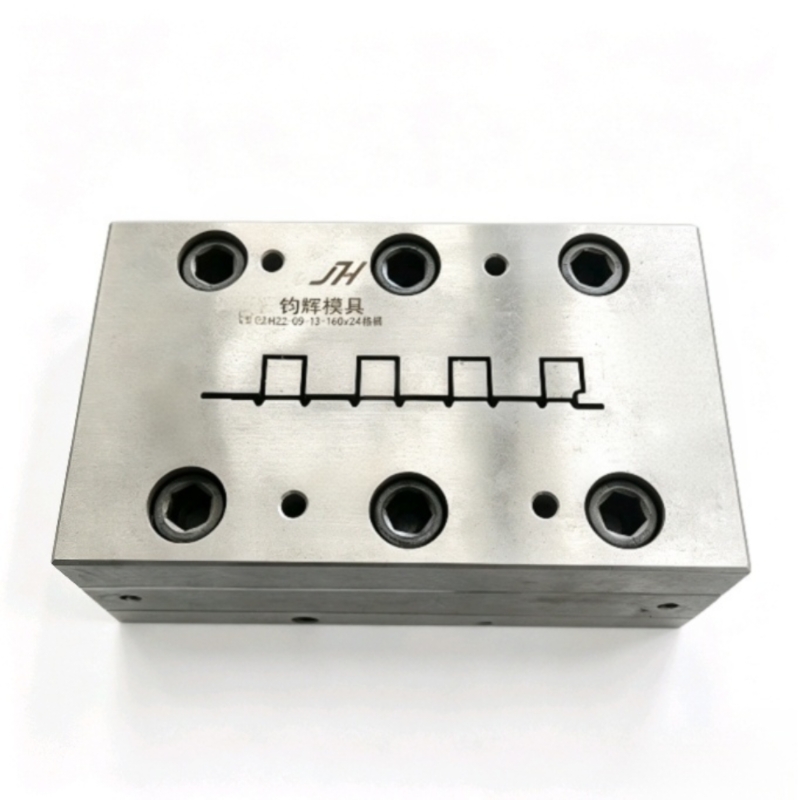

PVC WPC Foam Grille Extruded Molding Mold

Brand JUN HUI

Product origin HuBei

PVC WPC Foam Grille Extruded Molding Mold

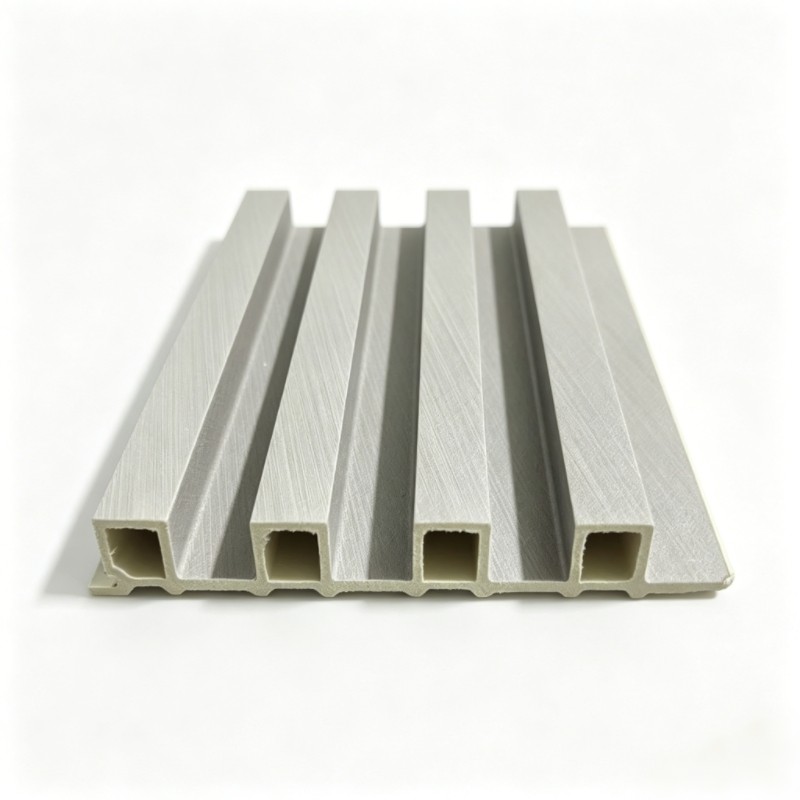

Premium PVC WPC foam grille extruded molding mold for wall panels. Direct from mill custom profile extrusion dies for architectural and decorative projects.

Email

PVC WPC Foam Grille Extruded Molding Mold

Conventional metal molds often fail to meet the rigorous demands of modern composite material extrusion. Where standard steel reaches its limits regarding wear resistance, thermal stability, and surface finish, high-performance PVC WPC foam grille extruded molding mold technology opens up new opportunities for manufacturers.

As the leading technological pioneer in plastic extrusion tooling, our PVC WPC foam grille extruded molding mold series proves to be beneficial wherever standard materials struggle with the abrasive nature of wood-plastic composites (WPC) and the corrosive elements of PVC foaming agents. This specialized tooling is designed to maximize production efficiency and product quality in the architectural and decorative profile sectors.

HARDNESS & WEAR RESISTANCE

Abrasion from mineral-filled compounds, glass fibers in WPC, and the chemical corrosion from PVC foaming agents can drastically reduce the life of most traditional plastic extrusion dies. High-viscosity melts and entrained solids create a harsh environment inside the barrel and die head.

Our PVC WPC foam grille extruded molding mold utilizes advanced bimetallic alloys and vacuum nitriding treatments that exhibit hardness values substantially higher than standard tool steels (up to HRC62-64). This superior hardness maximizes the life of the PVC WPC foam grille extruded molding mold, ensuring consistent dimensional accuracy and surface smoothness even after thousands of hours of continuous operation. The specialized flow channel design minimizes dead spots, preventing material degradation and ensuring a uniform foam structure in the final grille profile.

FEATURES & BENEFITS

SOLID ALLOY INTERNAL COMPONENTS

Our PVC WPC foam grille extruded molding mold utilizes only solid, high-grade alloy internal parts (no fragile coatings that can peel off).
The critical sizing zones of the PVC WPC foam grille extruded molding mold are calibrated to a minimum tolerance of ±0.05mm for ultimate protection against dimensional deviation.
The streamlined components of the PVC WPC foam grille extruded molding mold protect the entire flow path from the adapter inlet to the profile outlet, reducing back pressure and energy consumption.

MODULAR DESIGN FLEXIBILITY

Several flange and body size combinations of the PVC WPC foam grille extruded molding mold are available to meet specific application requirements, compatible with major extruder brands (Conical/Twin Screw).

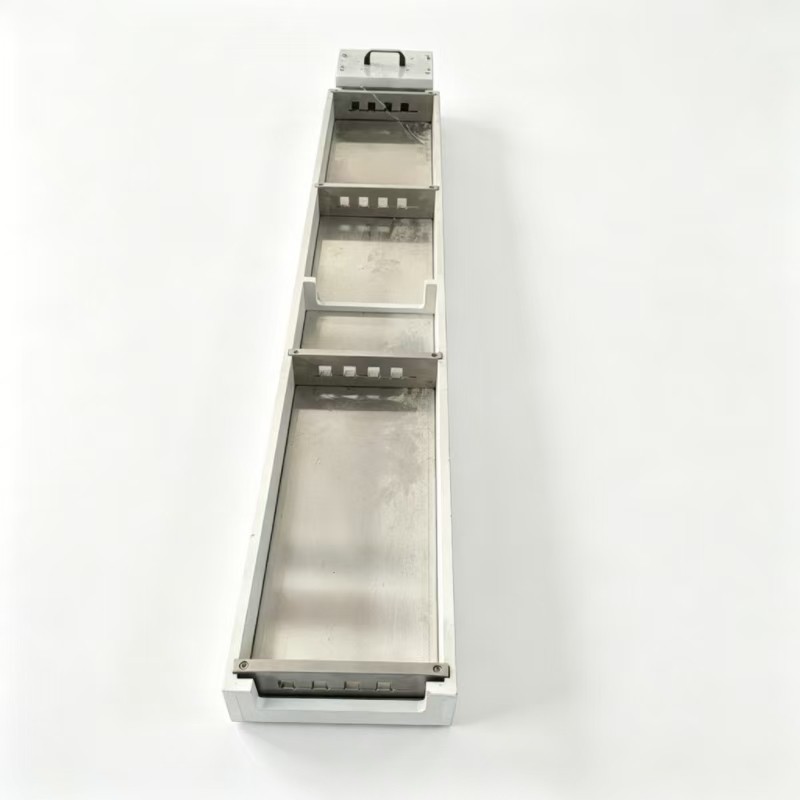

A wide range of calibration table interfaces are available on the PVC WPC foam grille extruded molding mold to meet various cooling and hauling speeds.
Simplified spare parts for the PVC WPC foam grille extruded molding mold allow for easy on-site maintenance and quick changeovers between different grille patterns.

DESIGN OPTIONS AVAILABLE

To ensure the PVC WPC foam grille extruded molding mold fits your exact production line, we offer extensive customization:

Material Compatibility: The PVC WPC foam grille extruded molding mold is optimized for rigid PVC, WPC (Wood Plastic Composite), and ASA co-extrusion applications.
Surface Finish Options: The PVC WPC foam grille extruded molding mold can be polished to a mirror finish or textured (wood grain/leather grain) directly on the die lips.
Co-extrusion Capability: Advanced PVC WPC foam grille extruded molding mold versions support multi-layer co-extrusion for capped profiles (e.g., ASA/PVC or PMMA/PVC).
Thermal Management: Integrated heating and cooling channels within the PVC WPC foam grille extruded molding mold ensure precise temperature control across the entire width of the die.

MODULATING (CONTROL) PROFILE VERSIONS

Variable Wall Thickness Design:
The PVC WPC foam grille extruded molding mold features adjustable choker bars and flexible lips. This allows operators to fine-tune the flow distribution during the extrusion process. By adjusting the PVC WPC foam grille extruded molding mold, you can compensate for uneven melt viscosity, ensuring that the foam expansion ratio is consistent across the entire width of the grille. This "modulating" capability reduces waste and improves the yield of high-quality PVC WPC foam grille extruded molding mold output.

ISOLATION (ON/OFF) & SPECIALTY VERSIONS

Full Bore & Complex Geometry Design:
For complex grille patterns, the PVC WPC foam grille extruded molding mold provides a straight-through unrestricted flow path design. This minimizes pressure loss and prevents material stagnation, which is critical for heat-sensitive PVC formulations. Whether producing simple slats or intricate lattice work, the PVC WPC foam grille extruded molding mold delivers sharp definition and structural integrity. Additionally, our PVC WPC foam grille extruded molding mold supports the integration of embedded metal inserts or reinforcement ribs directly during the extrusion process, enhancing the mechanical strength of the final architectural product.
